VJ-T [M8 & M10 & M12] / VJ [M8 & M10] / VJ-S [M8 & M10]
Drill Bits & others
KIST powder loads match tolerances to provide optimum power within recognized national velocity standards. Available in color-coded 10-load strips, and 100-load boxes.

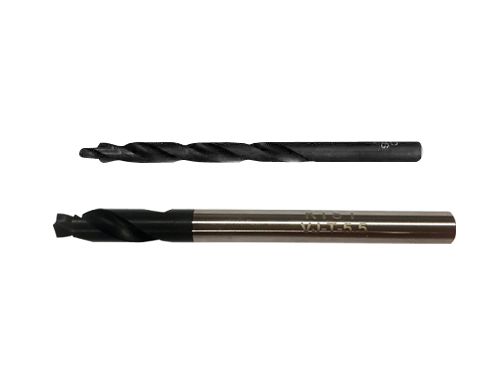

Drill Bits
KIST drill bits were designed for the VJ-T & VJ & VJ-S series pin
| Step Drill Bits | Hole depth (mm) | Applied Fixture Pin | Recommended drill RPM |
|---|---|---|---|
| VJ-T-5.5 | 5.5 | VJ-T [M8 / M10 /M12] | Min 2,000 RPM (Mild / high tensile steel) |
| PD-47768 | 7.1 | VJ [M8 or M10] | |
| PD-47748 | 5.1 | VJ-S [M8 or M10] |
-

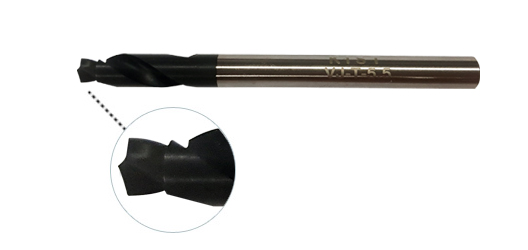

VJ-T-5.5 +
VJ-T-5.5 for more than 6mm thickness of base material
-
-
PD-47768 +
PD-47768 for more than 8mm thickness of base material
-
PD-47748 +
PD-47748 for more than 6mm thickness of base material
KIST supplies 1 (one) Drill Bit per 100EA of VJ-T & VJ & VJ-S Fixture Pin.
Fastener powder (Cartridge)
KIST powder loads match tolerances to provide optimum power within recognized national velocity standards. Available in color-coded 10-load strips, and 100-load boxes
Protection cover
KIST protection cover is attached for the fastener gun guide designed to prevent damage to painted surfaces
KIST supplies 1 (one) protection cover per 100EA of VJ or VJ-S Fixture Pin
