VJ-CP-2529 / VJ-CP-3035 / VJ-CP-3741 / VJ-CP-4448 / VJ-CP-4952
CAP & PLUG
VJ CAP & PLUG series were made of forged and integral, pressing type. therefore, that is provided superior pull-out / shear load and internal corrosion resistance after installation.
Principle of VJ CAP & PLUG
VJ CAP & PLUG series were made of forged and integral, pressing type. therefore, that is provided superior pull-out / shear load and internal corrosion resistance after installation.
-
VJ-CP-2529
-
VJ-CP-3035
-
VJ-CP-3741
-
VJ-CP-4448
-
VJ-CP-4952

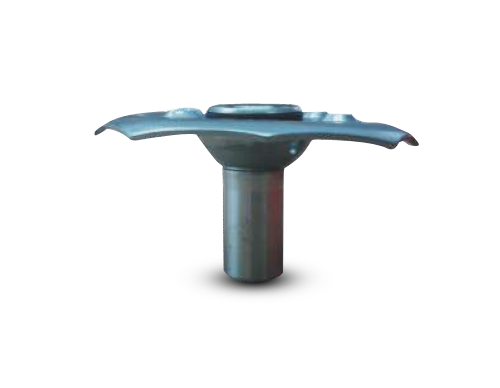

Forged Plug
- Material : SUS316L / SUS304 / Carbon Steel + Zn coated
- Feature
- No weld seam (one plug body)
- Strong durability threads and tightening
- Increase lateral force
- Octagon stable shape (KIST Design patent)
E - Plug
| Model | Plug length (mm) | Grating height *GH (mm) | *GH With E-Plug(mm) |
|---|---|---|---|
| VJ-CP-2529 | 22 | 25 ~ 29 | 55~59 |
| VJ-CP-3035 | 28 | 30 ~ 35 | 60~65 |
| VJ-CP-3741 | 34 | 37 ~ 41 | 67~71 |
| VJ-CP-4448 | 42 | 44 ~ 48 | 74~78 |
| VJ-CP-4952 | 47 | 49 ~ 52 | 79~82 |
| E-PLUG | 30 | - | - |
