VJ-TH [M7xM8]

VJ-TH (Screw-in) Carbon - for Onshore



- Easy & Quick installation (17 second ONLY)
- Compatibility with variable clips
- Easy maintenance
- Possible to dismantle and reuse
- Corrosion life ~ 10 years guarantee

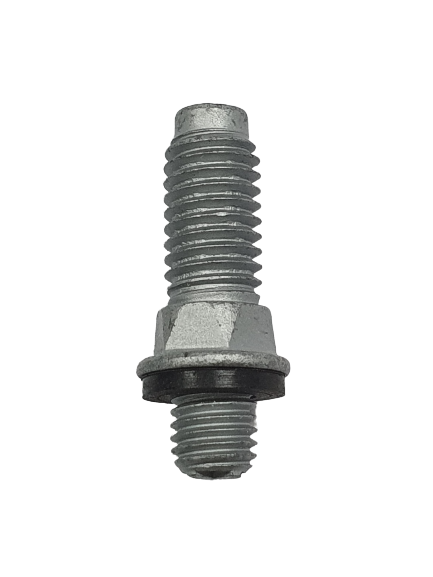

VJ-TH Fixture Pin (New stainless steel & carbon steel fastener)
A new technology of Grating & Multi-purpose Fastening System

Principle of VJ-TH Fixture Pin

    • The VJ-TH Fixture pin can be used as an alternative to the welds and bolts used to attach materials to structural steel and for fastening applications in onshore / shipbuilding and offshore plants.
    • The VJ-TH Fixture pin series were made of forged and integral, Self-Tapping screw type.
    • Tapping thread will be screwed in into a pre-drilled hole. and fixture pin is tapping its own internal mating threads when installed into base material.


Advantages of VJ-TH Fastening System


           For base material th'k ≥ 6.0mm or 8.0mm, the fastener is intended to be set in a pre-drilled pilot hole.

         The advantages of pilot hole is no through penetration of the base material therefore no rework of the protective surface coating on the back side is needed.

    • No maintenance – No corrosion – No inspection – No painting damage
    • Work Efficiency – Easy / quick installation ( Only 15 seconds for VJ-TH fastener installation )
    • High safe – No drop hazard – longer durability
    • Easy removal / reinstall for maintenanceType of VJ-TH Fastening System
